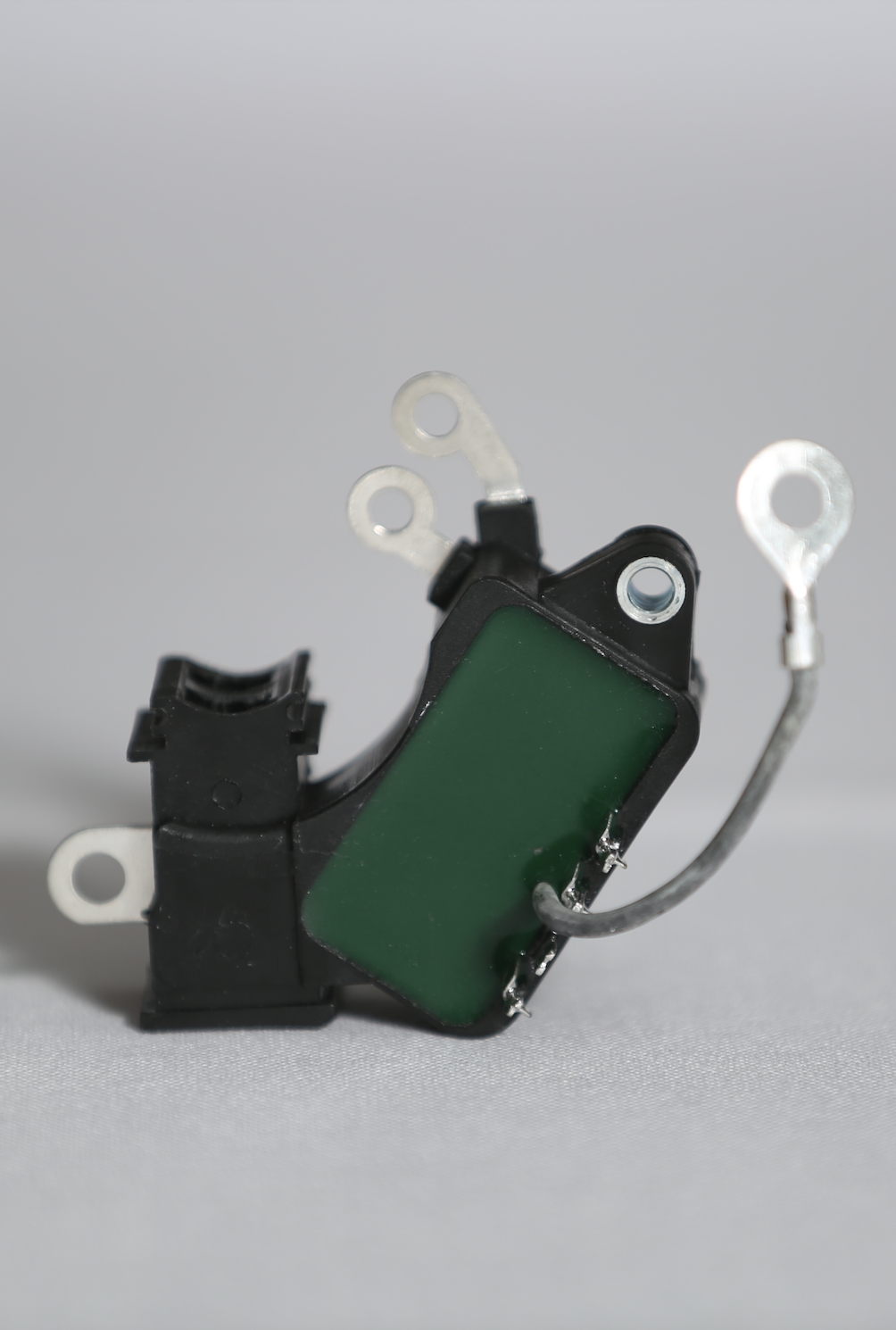

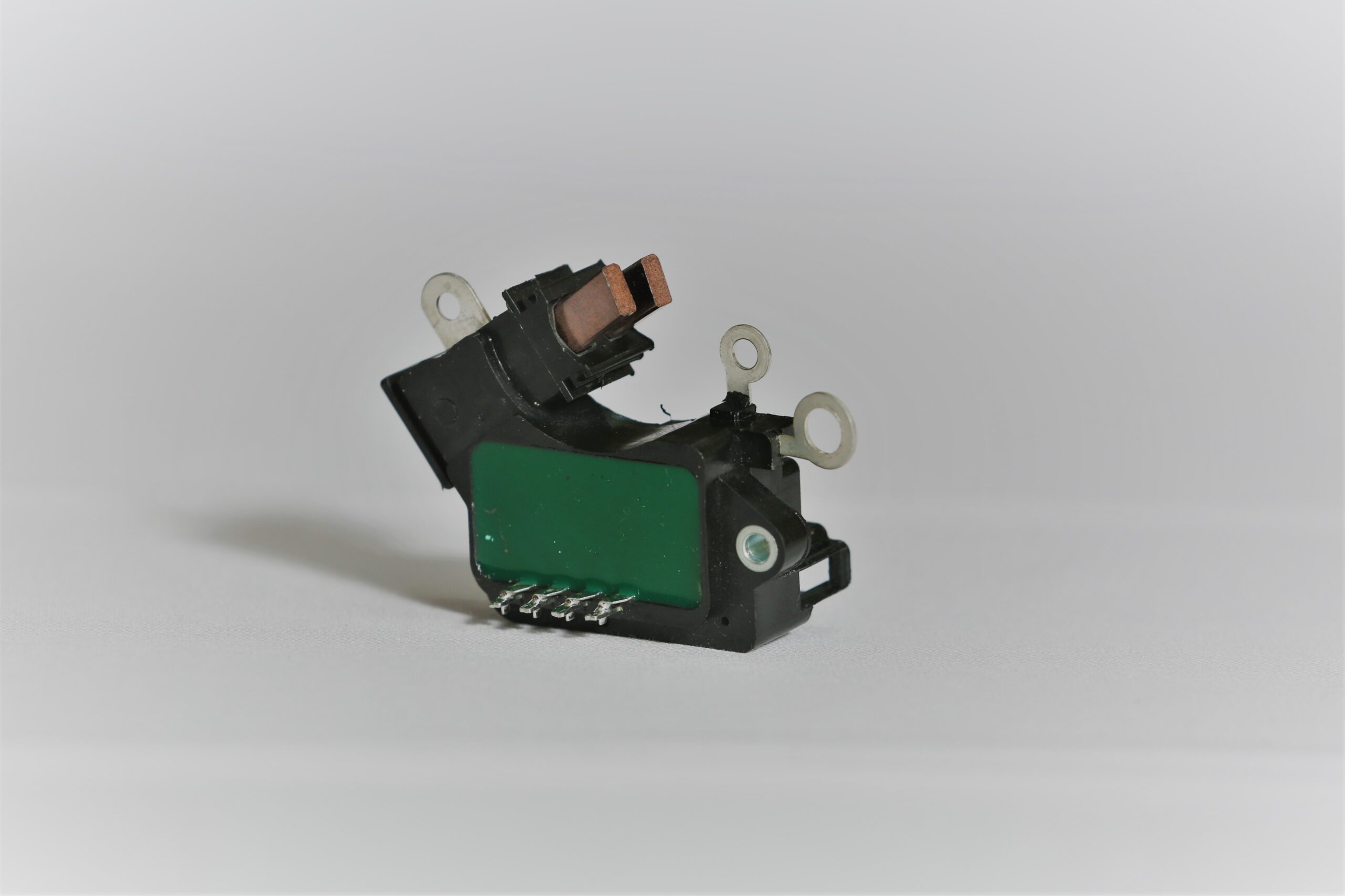

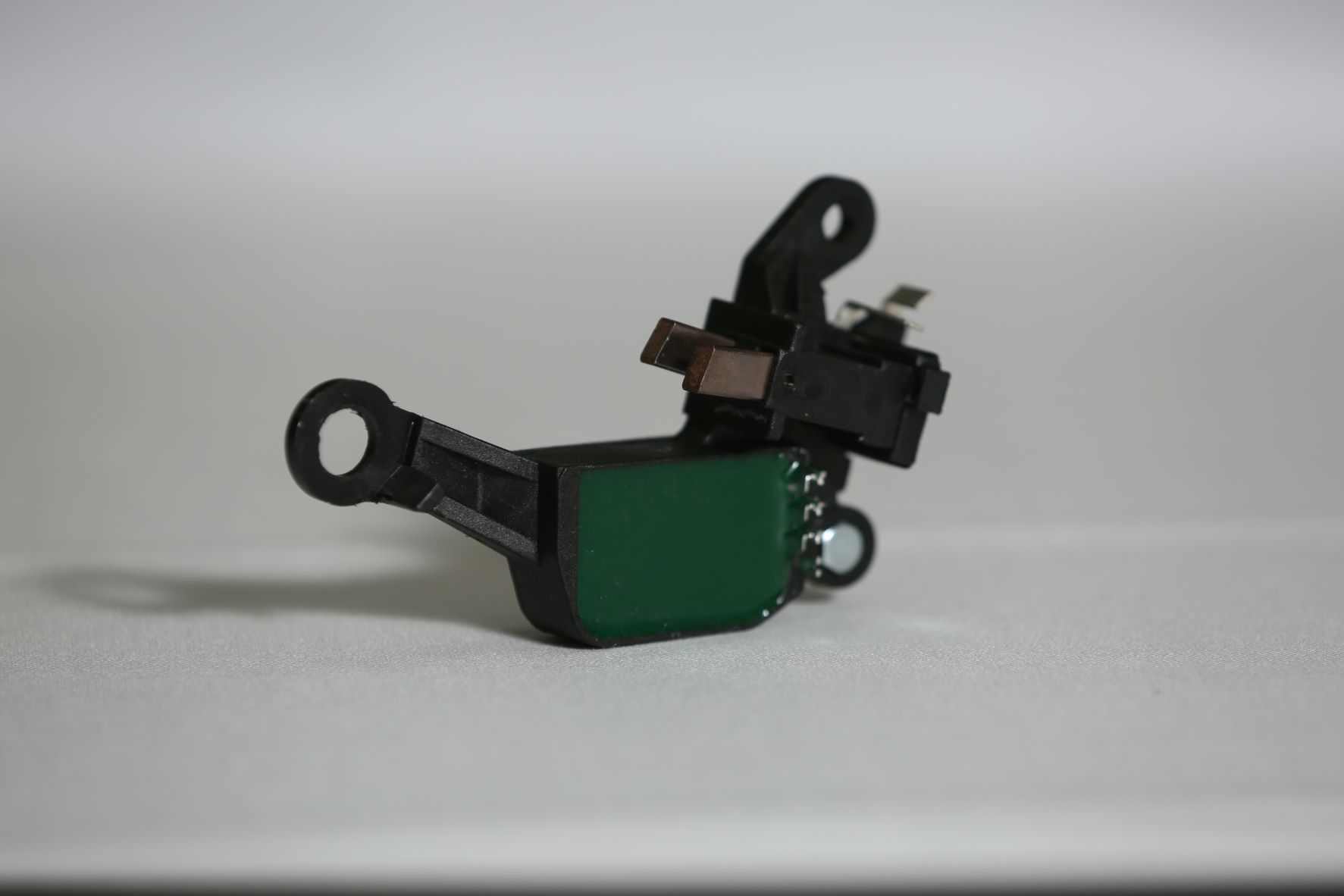

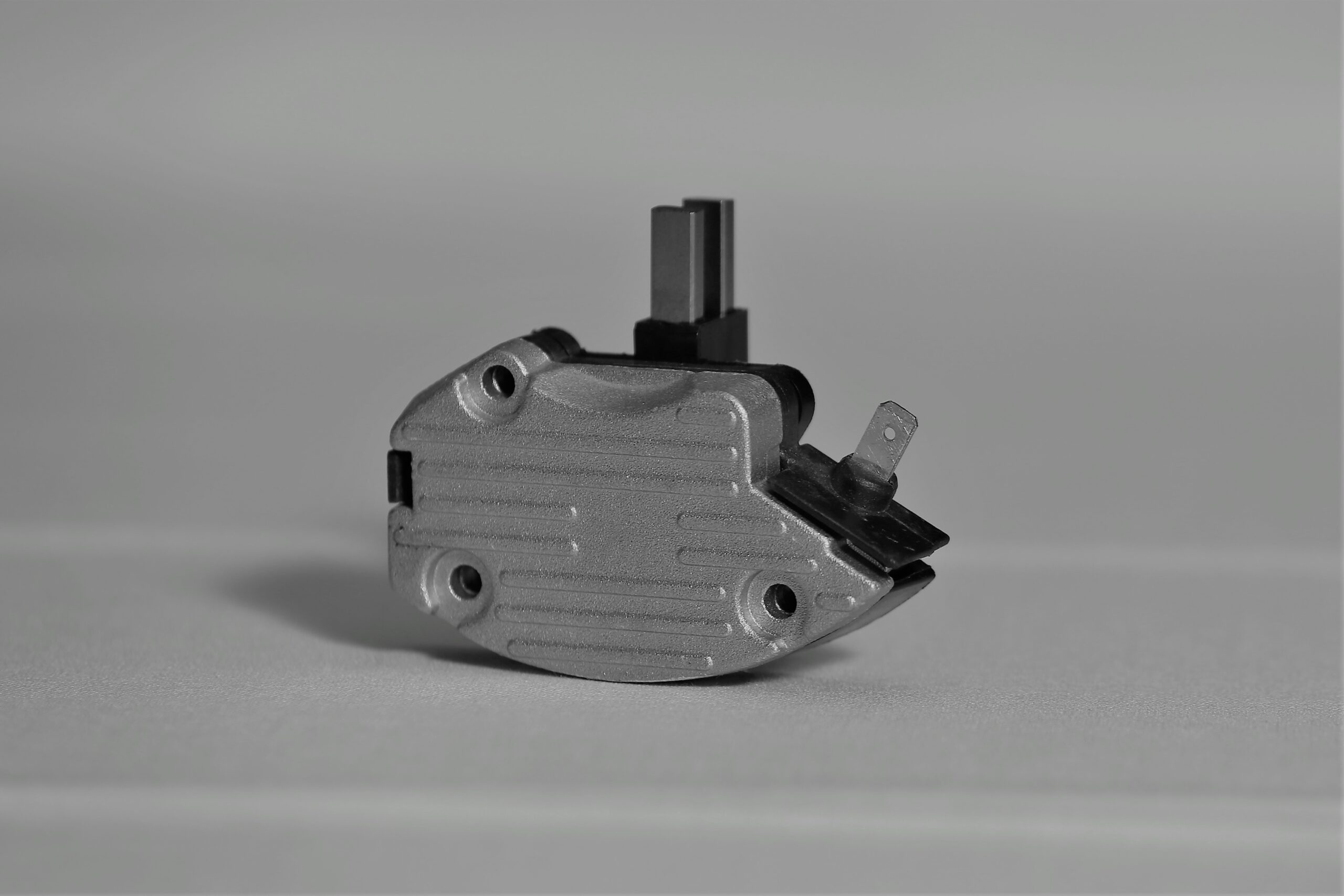

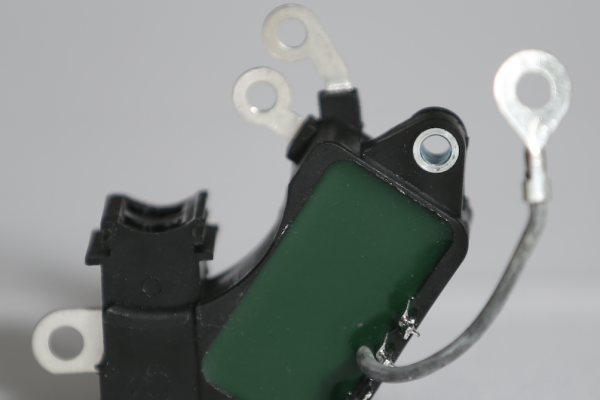

Voltage Regulators

Detailed Specifications

12 V, tolerance ± 0.2V
24 V, tolerance ± 0.2V
Current : 35 AMPS to 125 AMPS
Functional specifications:
Cut In Speed : 1200 to 1400 (configurable)
Speed Regulation : 2000 RPM to 6000 RPM
Load Regulation : 10% to 95%
Temperature coefficient : 10 mV/oC
Safety Specification:
Over Current Protection
Load dump protection
Thermal shutdown threshold
Environment Specification:
Vibrations : 1.5g from 10 Hz to 1000 Hz
Mechanical Shock : 100g
Temperature Cycle : -40 deg. C to +150 deg
Thermal Shock : -40 °C to + 150 °C
Humidity : 95% Rh @ 38 °C
Salt Spray : 48 hours of mist of salt spray
Automotive

Single-function

1

Multi-function

2

Applications in Sectors

AUTOMOTIVE
